    7000V Silicone Coated Fiberglass Sleeving

    Ask Lasest Price
    Certification : SGS
    Supply Ability : 50000meters /day
    Delivery Time : 5-7days
    Price : Negotiate
    Payment Terms : TT
    • Product Details
    • Company Profile

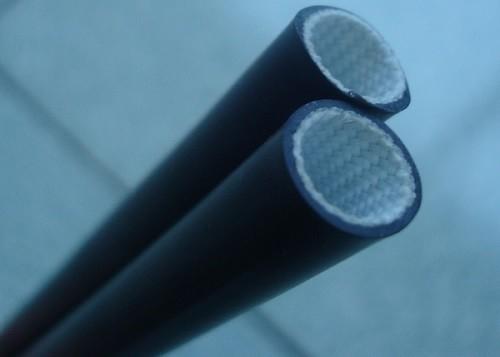

    7000V Silicone Coated Fiberglass Sleeving


    7000V Withstand voltage Silicone Coated Fiberglass Sleeving 30 Seconds Off-self time


    erglass sleeve coated silicone resin
    Product Description:
    Materials: Coated silicone resin and fiberglass braided
    Good flexibility and mechanical properties , Resistance to acid & oil
    Technology Index:
    Withstand voltage:7000V
    Individual value: 6000V
    Temperature resistance:-10ºC - +200ºC
    Braid colors: white/black/brown/yellow
    Flame retardancy: UL224 VW-1
    Off-self time: 30 seconds


    Inside diameter measurement

    Inside diameter

    Wall thickness

    Range

    Tolerance

    4000V

    7000V

    0.5-2.0mm

    +0.20-0.00mm

    0.40±0.05mm

    0.45±0.05mm

    2.5-3.0mm

    +0.25-0.00mm

    0.40±0.05mm

    0.50±0.05mm

    3.5-5.0mm

    +0.35-0.00mm

    0.50±0.05mm

    0.50±0.05mm

    6.0-9.0mm

    +0.50-0.00mm

    0.55±0.05mm

    0.60±0.05mm

    10.0-12.0mm

    +0.70-0.00mm

    0.60±0.05mm

    0.65±0.05mm

    13.0-20.0mm

    +0.80-0.00mm

    0.65±0.05mm

    0.70±0.05mm

    22.0-35.0mm

    +0.90-0.00mm

    1.00±0.05mm

    1.05±0.05mm

    Specification:

    ITEM

    VALUE

    Continuous Operating Temperature

    -10ºC+200ºC

    Temperature Endurance

    265ºC±2ºC168>1/2 Original value of voltage

    Aging Test

    260ºC,6 hrs without crackle

    Cold bend

    Witout crackle

    Horizontal Flame Test

    <30 seconds

    (V W-1)Flame Retardance

    <30 seconds

    Submerge Water Test

    Not-sticky,non-deformed,non bated

    Temperature-resistunce

    +200ºC-10ºC

    Average-voltage

    4000V-7000V

    Individual Value

    2500V-5000V


    Application:
    Generally used in electrical and electronic wiring, lighting, industrial machinery, electric products, and other places of high temperature
