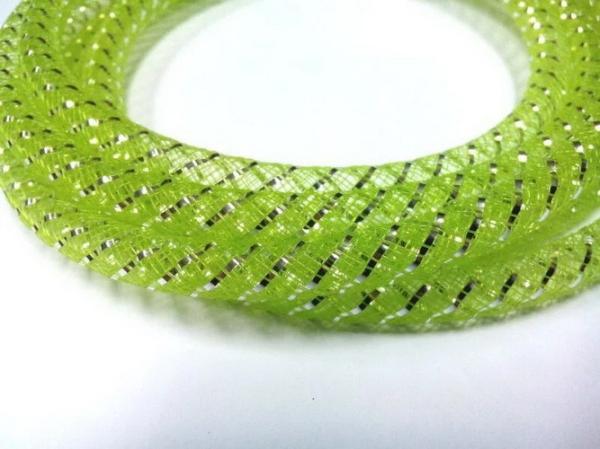

Green Braided Nylon Mesh Sleeve For Cable Protection , Expandable
Mesh Tube
Performance:
1. Fireproof and halogen-free
2. Light weight & flexible
3. Easy to install
Product Description:
Our Braided Expandable Sleeve is a kind of environmental product
which has beed authenticated by UL/SGS. It is fine knitted through
scientific distribution and advanced processing.
Owing to the outstanding elasticity, fire retardance, wear
resistance and heat prevention, the product is widely applied to
computer electric power lines, video cables, navigation,aotomobile,
electric wires and all of the wire fields.It's chief fuction is to
protect and beautify the wires.
Product Feature:
1. Material: High quality environmental protection polyester (PET)
free of halogen
2. Distinctive Features: good abrasion resistance, extensibility,
scalability, flame retardant
and the ventilation and heat radiation, corrosion resistance, easy
to bend, stretch, flexible, insulate, not to age.
3. Colors: All kinds of colors
4. Melting Point: 230°C+5
5. Temperature Range: (-50°C ~+150°C)
6. Fire Resistance Rating: ULVW-1
7. Certificate: UL, SGS, Reach and ROHS
Size:
Part Number |
SIZE |
Material |
Expandable Range |
Temperature Range |
mm |
inch |
mm |
inch |
PET03 |
3MM |
1/8" |
Polyester(PET) |
2.4--6.4 |
3/32"--1/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET06 |
6MM |
1/4" |
Polyester(PET) |
3.2--11.1 |
1/8"--7/16" |
-103°F-- 257°F |
-75°C-- 125°C |
PET08 |
8MM |
5/16" |
Polyester(PET) |
6.4--12.7 |
1/4"--1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET10 |
10MM |
3/8" |
Polyester(PET) |
4.8--15.9 |
3/16"--5/8" |
-103°F-- 257°F |
-75°C-- 125°C |
PET12 |
12MM |
1/2" |
Polyester(PET) |
6.4--19.1 |
1/4"--3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET16 |
16MM |
5/8" |
Polyester(PET) |
9.5--25.4 |
3/8"--1" |
-103°F-- 257°F |
-75°C-- 125°C |
PET19 |
19MM |
3/4" |
Polyester(PET) |
12.7--31.8 |
1/2"--1-1/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET25 |
25MM |
1" |
Polyester(PET) |
15.9--38.1 |
5/8"--1-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET32 |
32MM |
1 -1/4" |
Polyester(PET) |
19.1--44.5 |
3/4"--1-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET38 |
38MM |
1 -1/2" |
Polyester(PET) |
25.4--63.5 |
1"--2-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET45 |
45MM |
1 -3/4" |
Polyester(PET) |
31.8--69.9 |
1-1/4"--2-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET51 |
51MM |
2" |
Polyester(PET) |
38.1--88.9 |
1-1/2"--3-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET64 |
64MM |
2 -1/2" |
Polyester(PET) |
44.5--114.3 |
1-3/4"--4-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET76 |
76MM |
3" |
Polyester(PET) |
63.5--120.7 |
2-1/2"--4-3/4" |
-103°F-- 257°F |
-75°C-- 125° |
