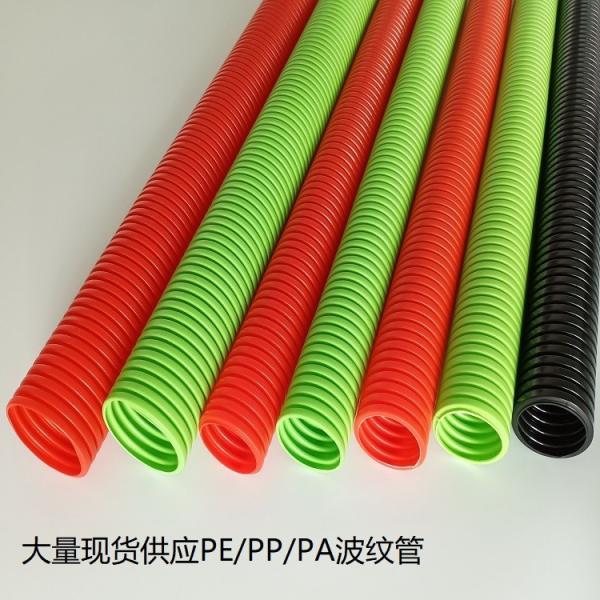

Corrugated Flexible Tubing Flexible Seal Type , Wavy Shape Black Or
White Corrugated Plastic Pipe
Introduction:
Plastic split Flexible corrugated electrical conduit pipes offers
you wide range technical properties for your cable and wire
management applications against not only mechnical damage but also
the influnces of UV radiation,weathering and chemicals.
Product Feature:
a. Highly abrasion resistance
b. Resist acids
c. Solvents and fuels resistant
d. Resistant to UL radiation
e. Insulative and protective, Against mechanical damage
f. Flexibility, Light weight
g. Easy to install and remove
h. Split style & Not split style
Technical Data:
| Material | MELG: PE
MNLG: PA
MDLG: PP |
| Operating range | MELG: -40C-+90C
MNLG: -40C-+130C
MDLG: -40C-+110C |
| Standard color | Black and Grey |
| Certificate | RoHS |
| Other features | High abrasion resistance
Resist acids
Solvents and fuels resistant |
Application:
a. Protecting wires and cables harness in automotive, equipment,
railway etc.
b. Used for protecting the hydraulic hoses.
c. Used in the fields of electrics communication, automobile for
connection insulation and rust-proof of metal product.
Size:
Item No
(ID) |
Type |
ID*OD
(MM) |
Cured Radius
(MM) |
Package
(M/R) |
PP-ø5.0 |
Multi-color
Non flame retardant
&
flame retardant |
5.2*7.5 |
≥10 |
200M/R |
PP-ø7.0 |
7.4*10.2 |
≥16 |
100M/R |
PP-ø10.0 |
10.0*13.3 |
≥20 |
100M/R |
PP-ø11.0 |
11.3*14.5 |
≥25 |
100M/R |
PP-ø12.0 |
11.8*15.8 |
≥25 |
100M/R |
PP-ø13.0 |
12.8*16.8 |
≥35 |
100M/R |
PP-ø14.0 |
14.0*18.0 |
≥40 |
100M/R |
PP-ø16.0 |
16.0*21.0 |
≥45 |
100M/R |
PP-ø19.0 |
19.5*24.8 |
≥45 |
50M/R |
PP-ø20.0 |
21.2*25.8 |
≥45 |
50M/R |
PP-ø23.0 |
23.0*28.0 |
≥50 |
50M/R |
PP-ø25.0 |
24.8*31.8 |
≥55 |
50M/R |
PP-ø29.0 |
29.0*34.5 |
≥60 |
50M/R |
PP-ø34.0 |
34.2*39.5 |
≥65 |
50M/R |
PP-ø48.0 |
48.2*54.5 |
≥65 |
50M/R |
