Flame Retardant Clear Flexible Silicone Tubing , Heat Shrink Pipe for Electric Protection

Ask Lasest Price
Certification :	SGS
Model Number :	Silcone Rubber Tubing
Price :	Negotiate
Payment Terms :	TT
Supply Ability :	50000meters /day
Delivery Time :	5-7days

Add to Cart

Product Details
Company Profile

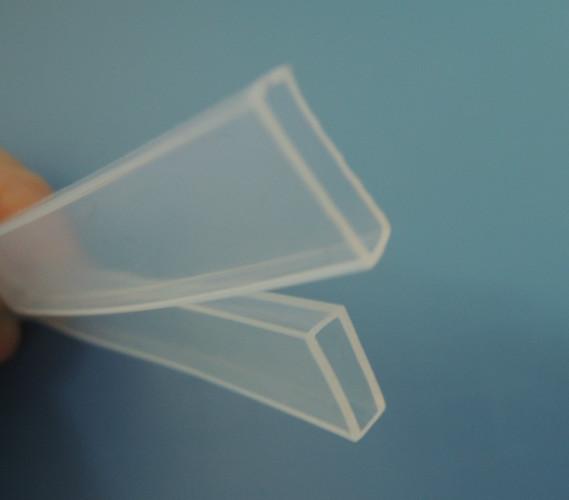

Flame Retardant Clear Flexible Silicone Tubing , Heat Shrink Pipe for Electric Protection

Flame Retardant Clear Silicone Rubber Tubing / Heat Shrink Pipe for Electric Protection

Usage

Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation. It

can be installed in coffee maker, water dispenser, electric water bottle, car wire hardness, car windows sealing, or used in electric insulation for semiconductor etc.

Specification

Performance	Test method	Performance index
Insulation strength (kv/mm)	GB/T 1048	≥18
Volume resistivity (Ω/cm)	GB/T 1410	≥1x1014
Tearing strength (MPa)	GB/T 1040	≥3.5 MPa
Elongation (%)	GB/T 1040	≥210
Fire resistance(flame retarded products)	GB/T 2408	VW-1

Dimension of UL certificate E360625 silicone rubber tube with Rohs reach certificate

Size	Tolerance(mm)	Thickness and tolerance
		2500V(mm)	4000V(mm)	6000V(mm)	7000V(mm)
φ0.8	0.8±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ1.0	1.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ1.5	1.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ2.0	2.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ2.5	2.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ3.0	3.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ3.5	3.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ4.0	4.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ4.5	4.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ5.0	5.0±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ5.5	5.5±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ6.0	6.0±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ6.5	6.5±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ7.0	7.0±0.20	—	1.00±0.15	1.50±0.20	2.00±0.25
φ7.5	7.5±0.20	—	1.00±0.15	1.50±0.20	2.00±0.25
φ8.0	8.0±0.25	—	1.00±0.15	1.50±0.20	2.00±0.25
φ9.0	9.0±0.25	—	1.00±0.15	1.50±0.20	2.00±0.25
φ10.0	10.0±0.25	—	1.00±0.15	1.50±0.20	2.00±0.25
φ11.0	11.0±0.30	—	1.00±0.15	1.50±0.20	2.00±0.25
φ12.0	12.0±0.30	—	1.00±0.15	1.50±0.20	2.00±0.25
φ13.0	13.0±0.30	—	1.00±0.15	1.50±0.20	2.00±0.25
φ14.0	14.0±0.30	—	—	1.50±0.20	2.00±0.25
φ15.0	15.0±0.30	—	—	1.50±0.20	2.00±0.25
φ20.0	20.0±0.30	—	—	—	2.50±0.3
