    Flexible Heat Resistant Silicone Tubing , High Temp Silicone Tubing

    Ask Lasest Price
    Model Number : Silicone Rubber Tubing
    Certification : SGS
    Supply Ability : 50000meters /day
    Delivery Time : 5-7days
    Price : Negotiate
    Payment Terms : TT
    • Product Details
    • Company Profile

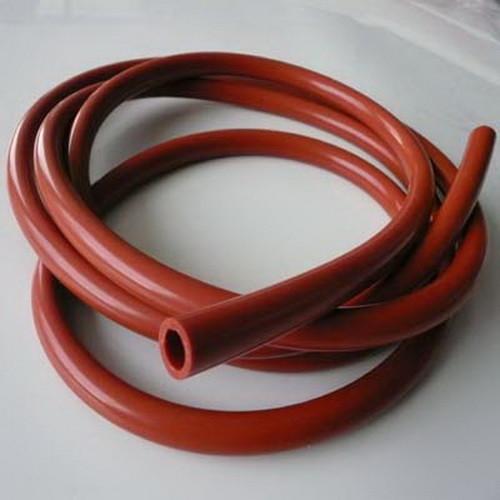

    Flexible Heat Resistant Silicone Tubing , High Temp Silicone Tubing


    Flexible Heat Resistant Silicone Tubing , High Temp Silicone Tubing


    Usage

    Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation.

    It can be installed in coffee maker, water dispenser, electric water bottle, car wire hardness, car windows sealing, or used in electric insulation for semiconductor etc.


    Specification

    PerformanceTest methodPerformance index
    Insulation strength (kv/mm)GB/T 1048≥18
    Volume resistivity (Ω/cm)GB/T 1410≥1x1014
    Tearing strength (MPa)GB/T 1040≥3.5 MPa
    Elongation (%)GB/T 1040≥210
    Fire resistance(flame retarded products)GB/T 2408VW-1

    Dimension of UL certificate E360625 silicone rubber tube with Rohs reach certificate

    SizeTolerance(mm)Thickness and tolerance
    2500V(mm)4000V(mm)6000V(mm)7000V(mm)
    φ0.80.8±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ1.01.0±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ1.51.5±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ2.02.0±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ2.52.5±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ3.03.0±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ3.53.5±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ4.04.0±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ4.54.5±0.100.50±0.101.00±0.151.50±0.202.00±0.25
    φ5.05.0±0.200.50±0.101.00±0.151.50±0.202.00±0.25
    φ5.55.5±0.200.50±0.101.00±0.151.50±0.202.00±0.25
    φ6.06.0±0.200.50±0.101.00±0.151.50±0.202.00±0.25
    φ6.56.5±0.200.50±0.101.00±0.151.50±0.202.00±0.25
    φ7.07.0±0.201.00±0.151.50±0.202.00±0.25
    φ7.57.5±0.201.00±0.151.50±0.202.00±0.25
    φ8.08.0±0.251.00±0.151.50±0.202.00±0.25
    φ9.09.0±0.251.00±0.151.50±0.202.00±0.25
    φ10.010.0±0.251.00±0.151.50±0.202.00±0.25
    φ11.011.0±0.301.00±0.151.50±0.202.00±0.25
    φ12.012.0±0.301.00±0.151.50±0.202.00±0.25
    φ13.013.0±0.301.00±0.151.50±0.202.00±0.25
    φ14.014.0±0.301.50±0.202.00±0.25
    φ15.015.0±0.301.50±0.202.00±0.25
    φ20.020.0±0.302.50±0.3

    Application:
    They are widely used in all kinds of household appliances, industrial appliances, lighting lamps and lanterns, electronic equipment insulation protection.
    And also suitable for: small appliances (coffee pot, KaiShuiHu, iron, electric rice cooker, deep fryer, disinfection cabinet water dispensers, fruit pulp machine,
    bread machine, burner, water heater, etc.) and electronic, automotive,
    medical and other mechanical products.
