Medical High Temperature Silicone Tubing 1.1 X2.0 Small Diameter

Ask Lasest Price
Model Number :	Silicone Rubber Tubing
Certification :	SGS
Price :	Negotiate
Payment Terms :	TT
Supply Ability :	50000meters /day
Delivery Time :	5-7days

Add to Cart

Product Details
Company Profile

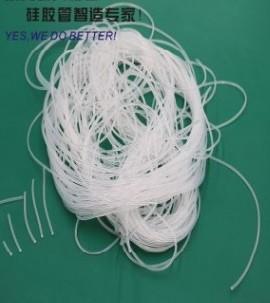

Medical High Temperature Silicone Tubing 1.1 X2.0 Small Diameter

High Temperature Silicone Rubber Tubing with Provisions of FDA 21

Usage

Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation.

It can be installed in coffee maker, water dispenser, electric water bottle, car wire hardness, or used in electric insulation for semiconductor etc.

Specification

Performance	Test method	Performance index
Dielectric strength (kv/mm)	GB/T 1048	≥18
Volume resistivity (Ω/cm)	GB/T 1410	≥1x1014
Tearing strength (MPa)	GB/T 1040	≥3.5 MPa
Elongation (%)	GB/T 1040	≥210
Fire resistance(flame retarded products)	GB/T 2408	FV-1

Dimension of 2.5kv 4kv 6kv 7kv breakout voltage 200ºC silicone rubber tube for dielectric strength

Size	Tolerance(mm)	Thickness and tolerance
		2500V(mm)	4000V(mm)	6000V(mm)	7000V(mm)
φ0.8	0.8±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ1.0	1.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ1.5	1.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ2.0	2.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ2.5	2.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ3.0	3.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ3.5	3.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ4.0	4.0±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ4.5	4.5±0.10	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ5.0	5.0±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ5.5	5.5±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ6.0	6.0±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ6.5	6.5±0.20	0.50±0.10	1.00±0.15	1.50±0.20	2.00±0.25
φ7.0	7.0±0.20	—	1.00±0.15	1.50±0.20	2.00±0.25
φ7.5	7.5±0.20	—	1.00±0.15	1.50±0.20	2.00±0.25
φ8.0	8.0±0.25	—	1.00±0.15	1.50±0.20	2.00±0.25
φ9.0	9.0±0.25	—	1.00±0.15	1.50±0.20	2.00±0.25
φ10.0	10.0±0.25	—	1.00±0.15	1.50±0.20	2.00±0.25
φ11.0	11.0±0.30	—	1.00±0.15	1.50±0.20	2.00±0.25
φ12.0	12.0±0.30	—	1.00±0.15	1.50±0.20	2.00±0.25
φ13.0	13.0±0.30	—	1.00±0.15	1.50±0.20	2.00±0.25
φ14.0	14.0±0.30	—	—	1.50±0.20	2.00±0.25
φ15.0	15.0±0.30	—	—	1.50±0.20	2.00±0.25
φ20.0	20.0±0.30	—	—	—	2.50±0.3
