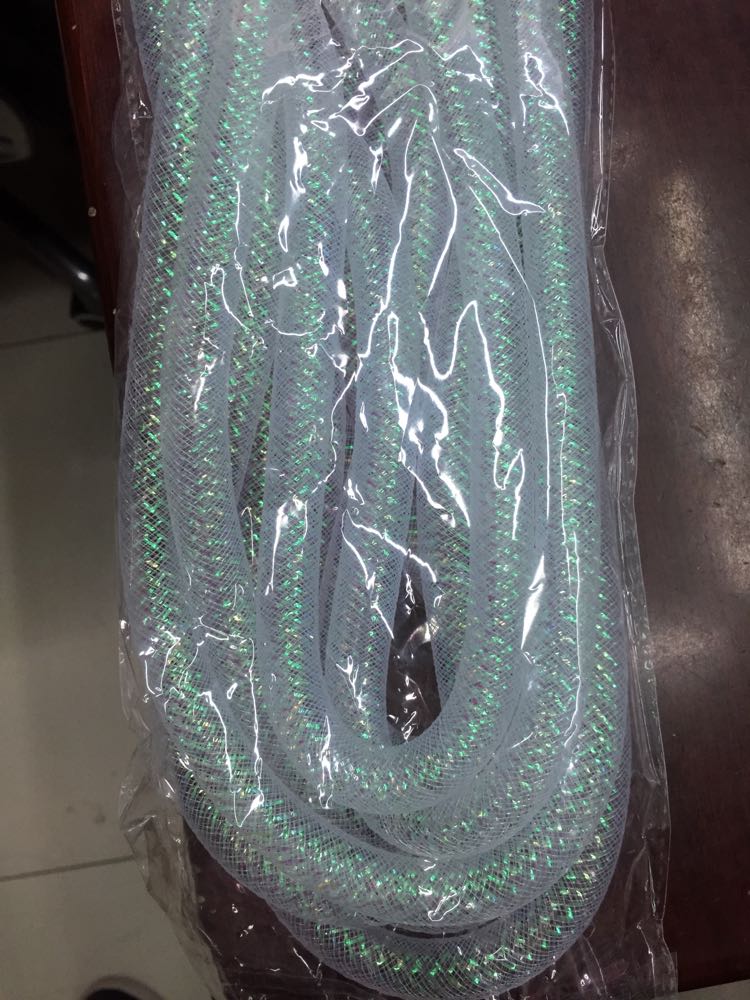

Transparent Colors Expandable Braided Mesh Sleeving ,16mm white
Mesh Sleeve
Performance:
1. Fireproof and halogen-free
2. Light weight & flexible
3. Easy to install
Product Description:
Cable Braided Sleeving's surface is Smooth, adopt environmental and
nonpoisonous PET material
Types have monofilament or multifilament, different patterns of
knitting, weaving different width
Another can be customized according to customer requirements
PET Round Braided Sleeve Decorative Color Polyester Tapes for
Christmas, Hair clip hoop and Light String
Product Feature:
1. Material: High quality environmental protection polyester (PET)
free of halogen
2. Distinctive Features: good abrasion resistance, extensibility,
scalability, flame retardant
and the ventilation and heat radiation, corrosion resistance, easy
to bend, stretch, flexible, insulate, not to age.
3. Colors: All kinds of colors
4. Melting Point: 230°C+5
5. Temperature Range: (-50°C ~+150°C)
6. Fire Resistance Rating: ULVW-1
7. Certificate: UL, SGS, Reach and ROHS
Size:
Part Number |
SIZE |
Material |
Expandable Range |
Temperature Range |
mm |
inch |
mm |
inch |
PET03 |
3MM |
1/8" |
Polyester(PET) |
2.4--6.4 |
3/32"--1/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET06 |
6MM |
1/4" |
Polyester(PET) |
3.2--11.1 |
1/8"--7/16" |
-103°F-- 257°F |
-75°C-- 125°C |
PET08 |
8MM |
5/16" |
Polyester(PET) |
6.4--12.7 |
1/4"--1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET10 |
10MM |
3/8" |
Polyester(PET) |
4.8--15.9 |
3/16"--5/8" |
-103°F-- 257°F |
-75°C-- 125°C |
PET12 |
12MM |
1/2" |
Polyester(PET) |
6.4--19.1 |
1/4"--3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET16 |
16MM |
5/8" |
Polyester(PET) |
9.5--25.4 |
3/8"--1" |
-103°F-- 257°F |
-75°C-- 125°C |
PET19 |
19MM |
3/4" |
Polyester(PET) |
12.7--31.8 |
1/2"--1-1/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET25 |
25MM |
1" |
Polyester(PET) |
15.9--38.1 |
5/8"--1-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET32 |
32MM |
1 -1/4" |
Polyester(PET) |
19.1--44.5 |
3/4"--1-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET38 |
38MM |
1 -1/2" |
Polyester(PET) |
25.4--63.5 |
1"--2-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET45 |
45MM |
1 -3/4" |
Polyester(PET) |
31.8--69.9 |
1-1/4"--2-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET51 |
51MM |
2" |
Polyester(PET) |
38.1--88.9 |
1-1/2"--3-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET64 |
64MM |
2 -1/2" |
Polyester(PET) |
44.5--114.3 |
1-3/4"--4-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET76 |
76MM |
3" |
Polyester(PET) |
63.5--120.7 |
2-1/2"--4-3/4" |
-103°F-- 257°F |
-75°C-- 125° |
