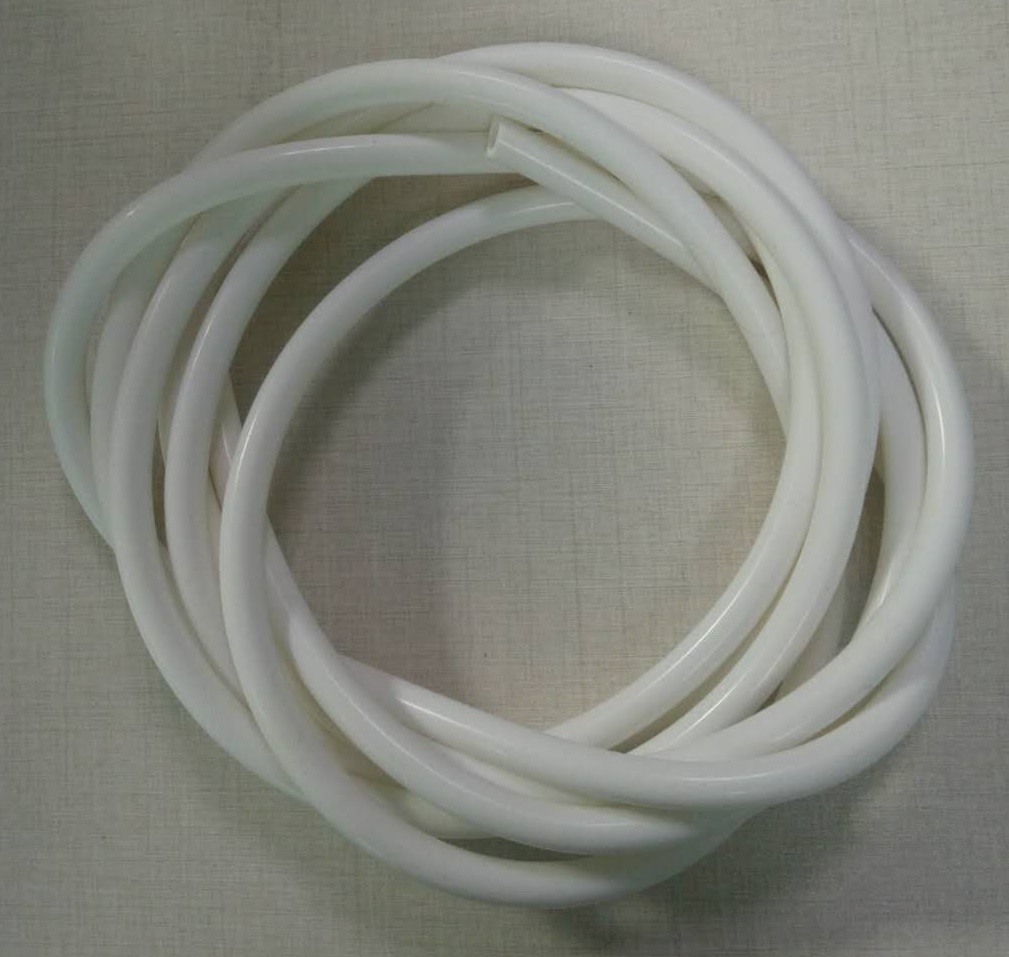

Silicone Tube Sleeve Rubber Conduction Hose Silicone Protective
Hose:
1. Material: 100% FDA, LFGB, USP class VI Silicone Rubber Raw
Material
2. Certification: with SGS, Reach, FDA, LMBG, LFGB are approved
3. Large Size Rank: OD1.0mm ~60mm; ID 0.3mm~ 59mm
4. High Temperature Resistance: -50°C~230°C(Nature color), Special
Material
-60°C~280°C(Red color)
5. Thermally conductive silicone sleeve protective tube is general
usage for
medical equipments, home appliances, military equipment, motors,
etc.
6.Radio opaque line through the length for x-ray visualization.
Application:
They are widely used in all kinds of household appliances,
industrial appliances, lighting lamps and lanterns, electronic
equipment insulation protection.
And also suitable for: small appliances (coffee pot, KaiShuiHu,
iron, electric rice cooker, deep fryer, disinfection cabinet water
dispensers, fruit pulp machine,
bread machine, burner, water heater, etc.) and electronic,
automotive,
medical and other mechanical products.
Size:
| specification(mm) | diameter | thickness | density |
| inch(mm) | outer(mm) | standard(mm) | Min(mm) |
|
| 0.8*1.8 | 0.8±0.1 | 1.8±0.1 | 0.5 | 0.38 | 1.18±0.02 |
|
| 1.0*2.0 | 1.0±0.2 | 2.0±0.2 | 0.5 | 0.38 | 1.18±0.02 |
|
| 1.2*2.2 | 1.2±0.2 | 2.2±0.2 | 0.5 | 0.38 | 1.18±0.02 |
|
| 1.5*2.5 | 1.5+0.4/-0.2 | 2.5+0.4/-0.2 | 0.5 | 0.38 | 1.18±0.02 |
|
| 2.0*3.0 | 2.0+0.4/-0.2 | 3.0+0.4/-0.2 | 0.5 | 0.38 | 1.18±0.02 |
|
| 2.5*3.5 | 2.5+0.4/-0.2 | 3.5+0.4/-0.2 | 0.5 | 0.38 | 1.18±0.02 |
|
| 3.0*4.0 | 3.0+0.4/-0.3 | 4.0+0.4/-0.3 | 0.5 | 0.38 | 1.18±0.02 |
|
| 3.5*4.5 | 3.5+0.4/-0.3 | 4.5+0.4/-0.3 | 0.5 | 0.38 | 1.18±0.02 |
|
| 4.0*5.0 | 4.0+0.5/-0.4 | 5.0+0.5/-0.4 | 0.5 | 0.38 | 1.18±0.02 |
|
| 4.5*5.5 | 4.5+0.5/-0.4 | 5.5+0.5/-0.4 | 0.5 | 0.38 | 1.18±0.02 |
|
| 5.0*6.0 | 5.0+0.5/-0.4 | 6.0+0.5/-0.4 | 0.5 | 0.38 | 1.18±0.02 |
|
| 6.0*7.0 | 6.0+1.0/-0.5 | 7.0+1.0/-0.5 | 0.5 | 0.38 | 1.18±0.02 |
|
| 7.0*8.4 | 7.0+1.0/-0.5 | 8.4+1.0/-0.5 | 0.7 | | |
