7kv Glass Fibre Sleeving 600V Silicone Fiberglass Sleeve Non Alkali

Ask Lasest Price
Model Number :	Silicone Coated Fiberglass Sleeving
Certification :	ROHS
Price :	Negotiate
Payment Terms :	TT
Supply Ability :	50000meters /day
Delivery Time :	5-7days

Add to Cart

Product Details
Company Profile

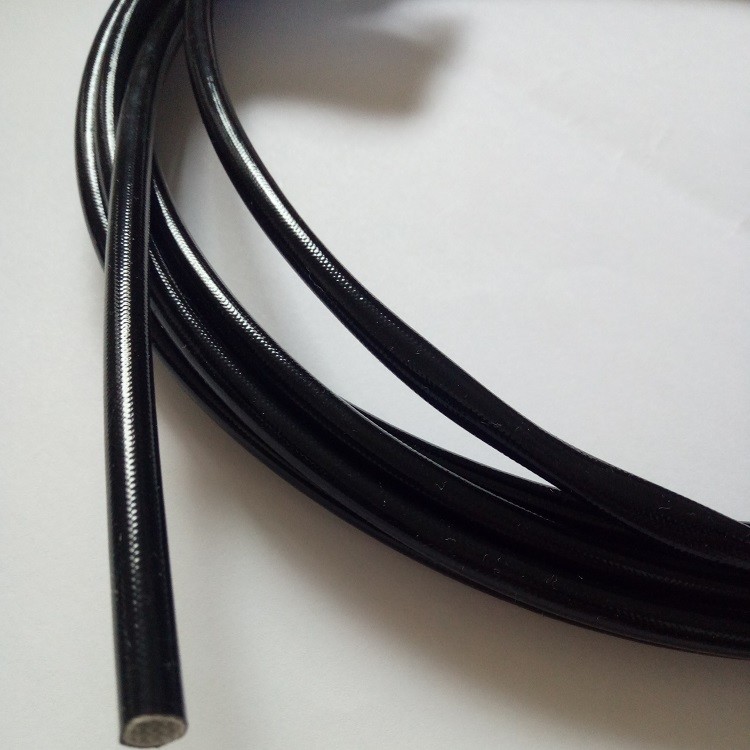

7kv Glass Fibre Sleeving 600V Silicone Fiberglass Sleeve Non Alkali

SILICONE GLASS FIBRE SLEEVING

Max.Temperature Rating:200℃

Max.Working Voltage:600V

◆ STRUCTURE

The material content of the 7.0KV is Non-Alkali Fiber Glass Braided with silicone Vanish and Dried.

◆ USAGE

It can be employed for insulating one or more un-insulated or partially insulated conductors ,bus bars, component leads,or assemblies of electrical componcnts .These sleevings with its good dielectric strength ,supple and flame retarding properties make these sleevings high performance qualities and suitable for a wide range of uses.

◆ SPECIFICATION

ITEM	PERFORMANCE		NOTE
DIELECTRIC BREAKDOWN VOLTAGE KV AC	MINIMUM AVERAGE	≥7.0	BEFORE AGED
	MINIMUM AT ANY POINT	≥5.0	BEFORE AGED
	MINIMUM AVERAGE	≥3.5	*168 HRS 265±5℃**
	MINIMUM AT ANY POINT	≥2.5	*168 HRS 265±5℃**
	NO BREAKDOWN	/	1 KV IN 2% SALT WATER
THERMAL ENDURANCE	NO INDICATION OF CRACK	OK	*1440 HRS 235±5℃**
FIRE RESISTANCE	VW-1 ≦60S	OK	UL 1441

◆ DIMENSION

INSIDE DIAMETER /MM (mm)		WALL THICKNESS MINIMUM/MM
SIZE	TOLERANCE	WALL THICKNESS MINIMUM/MM
0.5-1.5	+0.2, -0.1	ID:≤6.0mm WT:≥0.40mm ID:＞6.0mm WT:≥0.6mm
2.0-9.0	+0.3, -0.1
10.0-12.0	+0.5, -0.5
14.0-30.0	+1.0, -1.0

◆ PACKAGE

The finished sleevings can be cut into a standard shipping length of 1,25,50,or 100 meters.

◆ COLOR

White is the standard color, But Black,Blue,Red,Yellow,Green and other color available.

7kv Glass Fibre Sleeving 600V Silicone Fiberglass Sleeve Non Alkali
